MCX-800MZ

$2,350.00

8-channel amplifier utilizing Adaptive Voltage Switching Power Supply technology with explosive power and ultra-low distortion.

Peak Power: 280W@4ohm, 170W@8ohm.

RMS power: 220W@4ohm, 120W@8ohm.

Multizone: Bus A, Bus B, and Line In.

Description

> Description

The NuPrime MCX-800MZ is a multizone eight-channel amplifier that has four stereo modules, each with its own Adaptive Voltage Switching Power Supply technology and integrated amplifier incorporating highspeed gate driver error correction. This technology enables each module to deliver explosive power and ultra-low distortion, with a neutral and detailed sound characteristic. The MCX-800MZ has advanced protection circuitry that safeguards it from fault conditions such as short circuits, overload, overtemperature, and under-voltage.

The Adaptive Voltage Switching Power Supply is the most innovative SMPS design introduced by NuPrime. The amplifier’s output signal feeds back into the power supply’s servo power stage, causing a change in the output voltages supplying the power stage of the amplifier. This design resulted in more details at a low music level and explosive power at a high volume.

> Specification

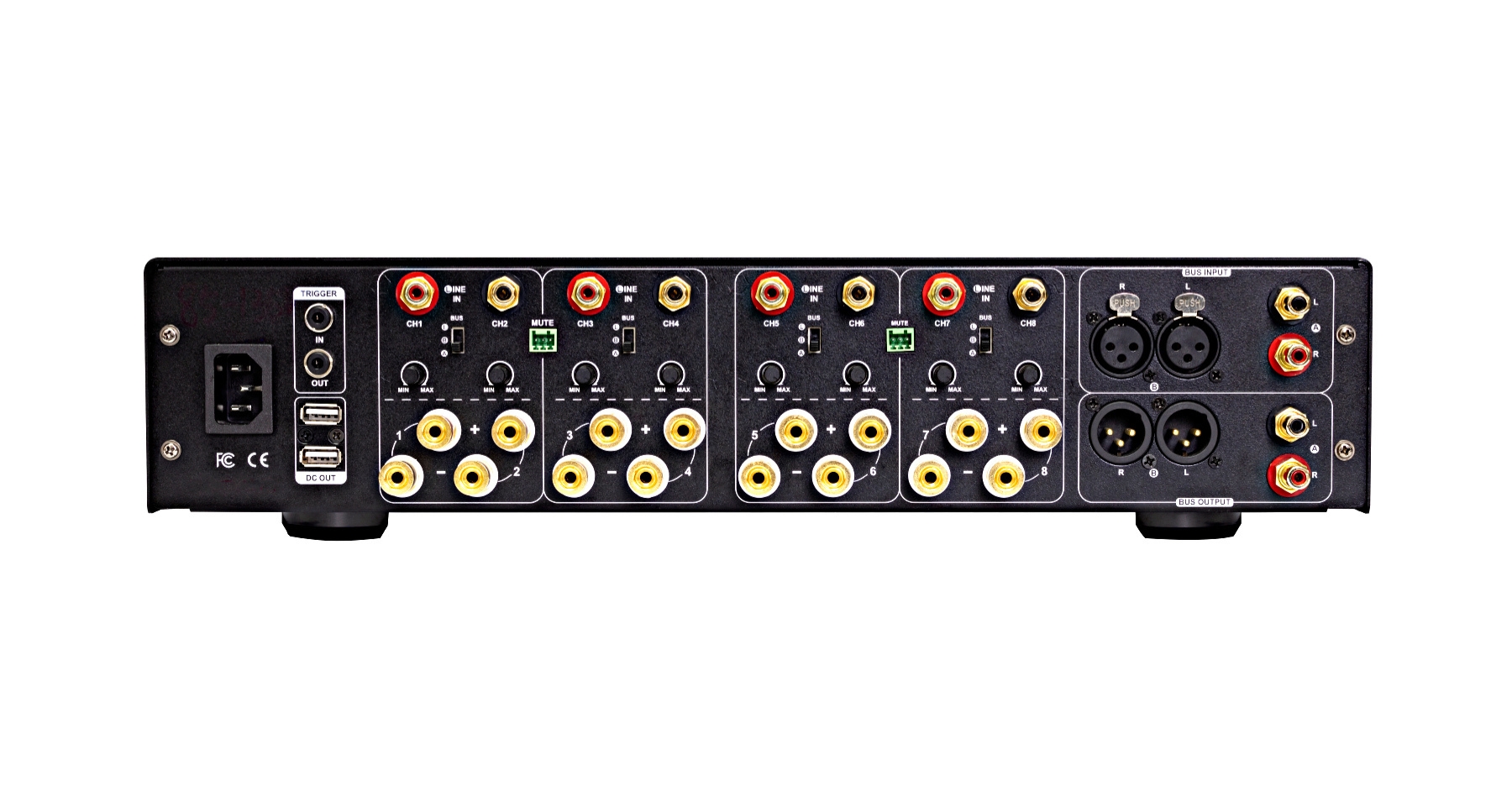

Back Panel View:

Back panel of MCX-800MZ



Inputs

  • Switch L position : RCA analog input x 8
  • Switch B position : XLR analog input x 2
  • Switch A position : RCA analog input x 2
  • Trigger in (DC 0V~15V). Floating or (DC 3V~15V) as running ; less than 0.7V as standby.

Outputs

  • Stereo Speaker Out x 8
  • Line Out : XLR analog Out x 2 , RCA analog Out x 2
  • Trigger Out (12V,<0.1A)
  • DC 5V Output via Type-A USB Connector (Maximum output 1.6A) x 2

Inputs switch:

  • L: Each channel has an independent input (Line In)
  • B: All inputs are transmitted through XLR cable (Bus B)
  • A: All inputs are transmitted through RCA cable (Bus A)

Bus Function:

  • Bus L: When the switch is in the L position (Line In), each channel has an independent input to drive each corresponding speaker output.
  • Bus B : When the switch is in the B position(Bus B), all inputs are transmitted through Bus B XLR cable , the left channel drives speaker outputs 1, 3, 5, and 7, the right channel drives speaker outputs 2, 4, 6, and 8 and Bus Output can feed Bus Input of another MCX-800MZ.
  • Bus A: When the switch is in the A position(Bus A), all inputs are transmitted through Bus A RCA cable , the left channel drives speaker outputs 1, 3, 5, and 7, the right channel drives speaker outputs 2, 4, 6, and 8 and Bus Output can feed Bus Input of another MCX-800MZ.

Amplifier

  • Power Output (Peak): THD+N 10% @ 4 Ohm @ 300W
  • Power Output (Peak): THD+N 10% @ 6 Ohm @ 240W
  • Power Output (Peak): THD+N 10% @ 8 Ohm @ 180W
  • Power Output (RMS rated): THD+N 1% @ 4 Ohm @ 260W
  • Power Output (RMS rated): THD+N 1% @ 6 Ohm @ 200W
  • Power Output (RMS rated): THD+N 1% @ 8 Ohm @ 150W
  • Input Impedance: 47k Ohms
  • Gain Adjustable: Magnification x 17~x 32 is adjusted through variable resistor
  • Signal to Noise Ratio: > 95dB at 1W, 10W, 100W
  • THD+N: <0.005%
  • Frequency Response: 10Hz to 50kHz
  • Worldwide AC voltage: US Version 100 ~ 120Vac, Europe version 220 ~ 240Vac, AC voltage not switchable
  • AC Fuse: Slow-blow, 15A/250V(US Version) , 10A/250V(Europe version)
  • Dimension: 430 mm W x 330 mm D x 105 mm H (including feet)
  • Weight: 10.5 kg
  • Color: Black

> User Guide & Manual

Connection:

>Download MCX-800MZ-Manual-Dec-11-2023
