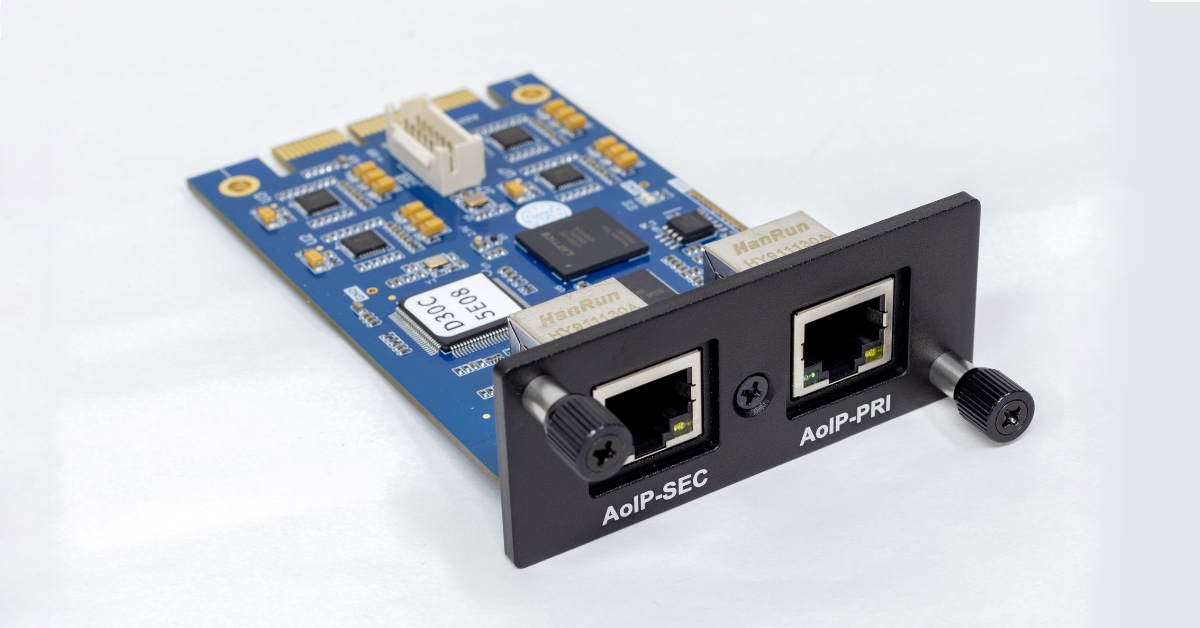

A 16-Channel AoIP Expansion Card for NuPrime Fusion-X
The Card-AoIP-96A is a professional-grade Audio over IP (AoIP) interface designed to integrate seamlessly with the NuPrime Fusion-X modular platform. Offering up to 16 channels of high-resolution audio at 96kHz, the card provides robust AoIP connectivity for immersive home theater, studio, or high-fidelity multi-room environments.
Built for maximum flexibility, the Card-AoIP-96A supports AES67 interoperability for compatibility with broadcast and commercial systems. With its dual Ethernet ports, the card allows for device daisy-chaining or redundant networking, ideal for complex distributed audio setups.
Description
Key Features
16-Channel AoIP Streaming
Supports up to 16 simultaneous input/output audio channels over Ethernet.
High-Resolution Audio
Up to 96kHz / 24-bit audio when AES67 mode is disabled.
Fixed 48kHz sampling rate in AES67 mode for standards compliance.
Dual Ethernet Ports
Primary port for main network connection.
Secondary port for daisy-chaining devices without a switch,
AES67 Compatibility
Enables seamless interoperability with Dante, Ravenna, and other AES67-compliant devices and networks.
Nuprime Fusion-X Platform Integration
Easily installs into Fusion-X expansion slots; plug-and-play configuration with NuPrime Fusion-X products.
Low Latency & Clock Synchronization
Network-based audio with precise clocking and minimal jitter, ideal for immersive and multi-channel playback
AoIP Controller
AoIP Controller
Nuprime Controller (for Windows only). MacOS, iOS and Android under development.
Connecting source and receiver channels in an AoIP system is as simple as a point-and-click operation.
In this use case, an H16-A (device ID “a227-341e”) decodes Dolby Atmos 9.1.6 and distributes it to two MCX-800AD devices equipped with AoIP plugin cards. Device ID “a227-5019” handles channels 1 to 8, while device ID “a227-403e” manages channels 9 to 16.
