$199.00

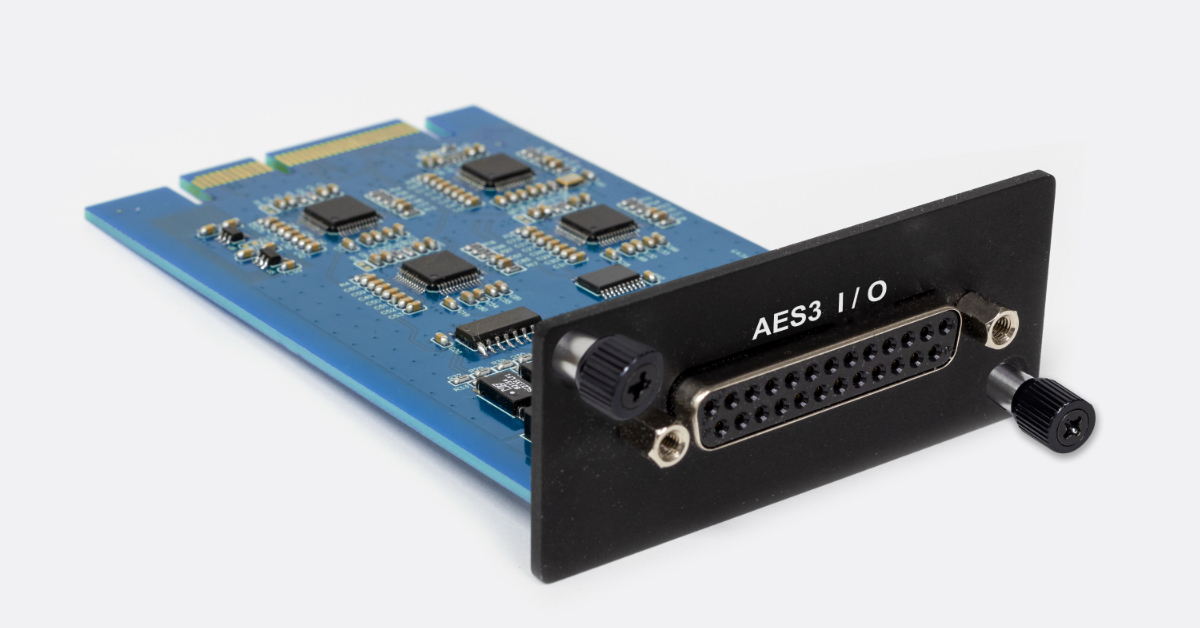

A 16-Channel AES Expansion Card for NuPrime Fusion-X
The Card-AES-96A is a professional-grade AES3 (AES/EBU) interface designed for seamless integration with the NuPrime Fusion-X modular platform. Supporting up to 16 channels of high-resolution audio at 96 kHz via multiple AES3 inputs/outputs, it provides robust digital connectivity for immersive home theater, professional studio, or high-fidelity multi-room environments.
You don’t need to understand AES to connect NuPrime multi-channel devices using compatible AES DB25 ports.
AES59 defines the pin-out and wiring standard for AES3 digital audio signals when transmitted over DB25 (D-sub) connectors. It ensures that multi-channel AES3 connections (typically 8 channels in and 8 channels out) are interoperable between different manufacturers’ equipment — such as audio interfaces, consoles, and recorders.
AES - Each DB25 port carries 8 channels (4 stereo pairs), so two DB25 connectors provide up to 16 channels of AES3 digital audio
NuPrime-X is a trademark of NuPrime Audio.
TASCAM is a registered trademark of TEAC Corporation.
AES59 and AES3 are standards established by the Audio Engineering Society (AES).
All other trademarks, product names, and company names or logos mentioned in this manual are the property of their
respective owners.
Reference to third-party standards (e.g., TASCAM pinout, AES59) is solely for the purpose of indicating technical
compatibility and standard compliance. NuPrime-X products are compatible with these industry standards, and this
manual does not imply any affiliation with, sponsorship, or endorsement by the trademark owners.
