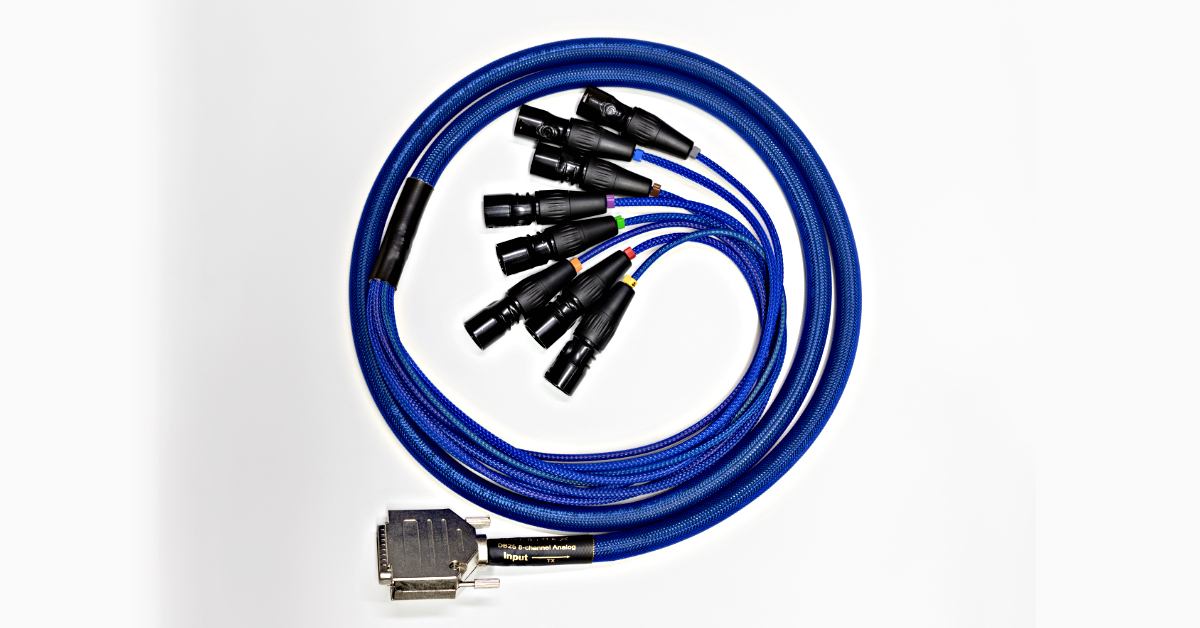

The NuPrime ANA-Core DB25-XLR cable delivers versatile, high-performance analog interfacing that bridges multichannel systems and discrete balanced equipment with ease. Designed to the TASCAM DB25 analog standard, it features a robust DB25 male connector on one end and high-quality 3-pin XLR connectors on the other, making it ideal for connecting multichannel consoles, DAWs, and audio interfaces to outboard converters, processors, and multi-channel amplifiers. High-purity copper conductors and comprehensive shielding ensure clean signal transmission with excellent noise rejection, minimal crosstalk, and low signal degradation. With durable construction and secure connector terminations, the ANA-Core DB25-XLR is well suited for both permanent installations and mobile professional environments, delivering consistent, industry-standard performance across all balanced analog audio applications.
ANA-Core DB25-XLR
$199.00
The NuPrime XLR-Core DB25–XLR is a professional analog audio cable built to the AES59 (TASCAM) standard, providing reliable multichannel balanced line-level analog connectivity between DB25-equipped systems and XLR devices for studio, broadcast, and live sound use.
Availability: 10 in stock
Description
SPECS
SPECIFICATIONS
Standards Compliance
- TASCAM analog DB25 pinout (balanced analog multichannel standard)
Connectors

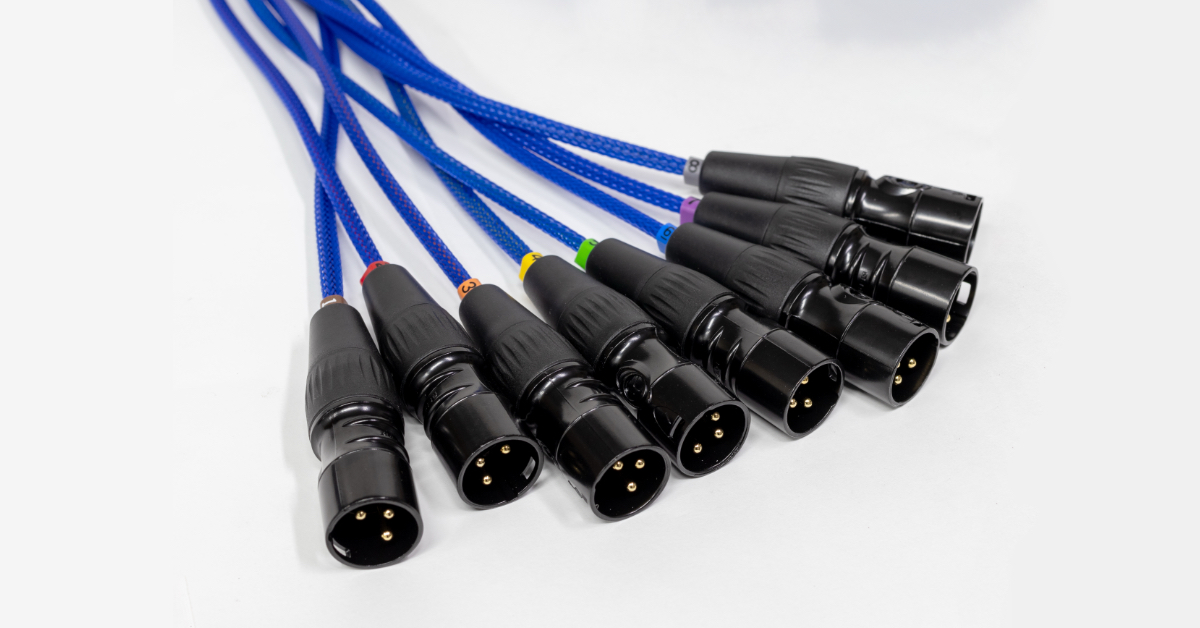

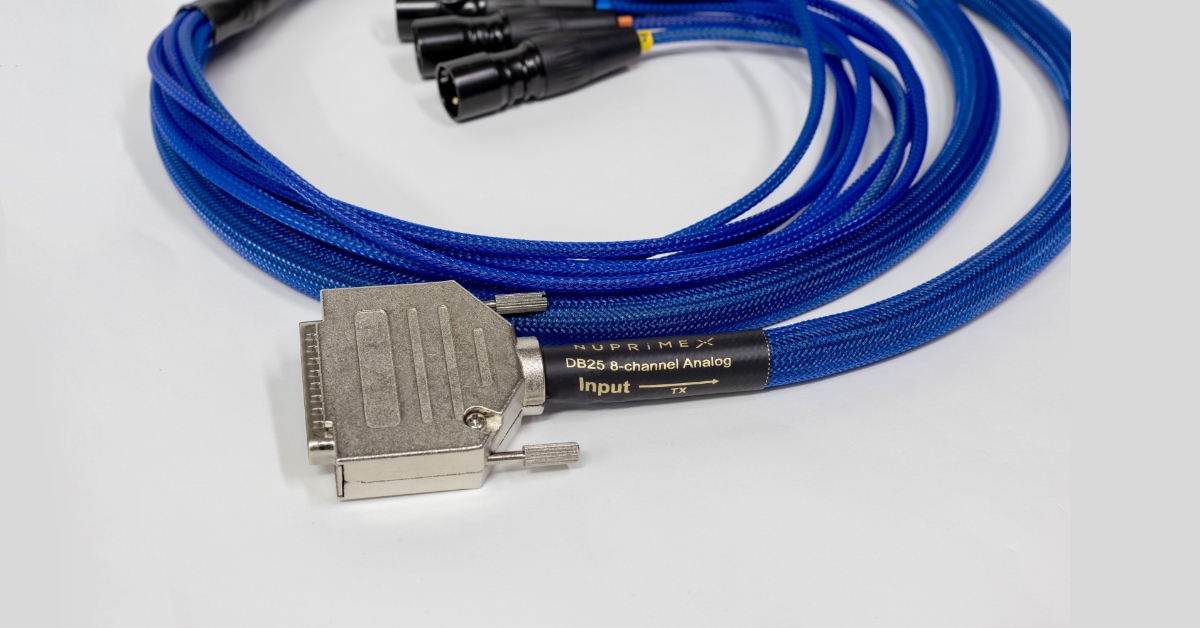

- DB25 male to 8 × XLR (XLR Male configurations)
- Precision-terminated, gold-plated contacts

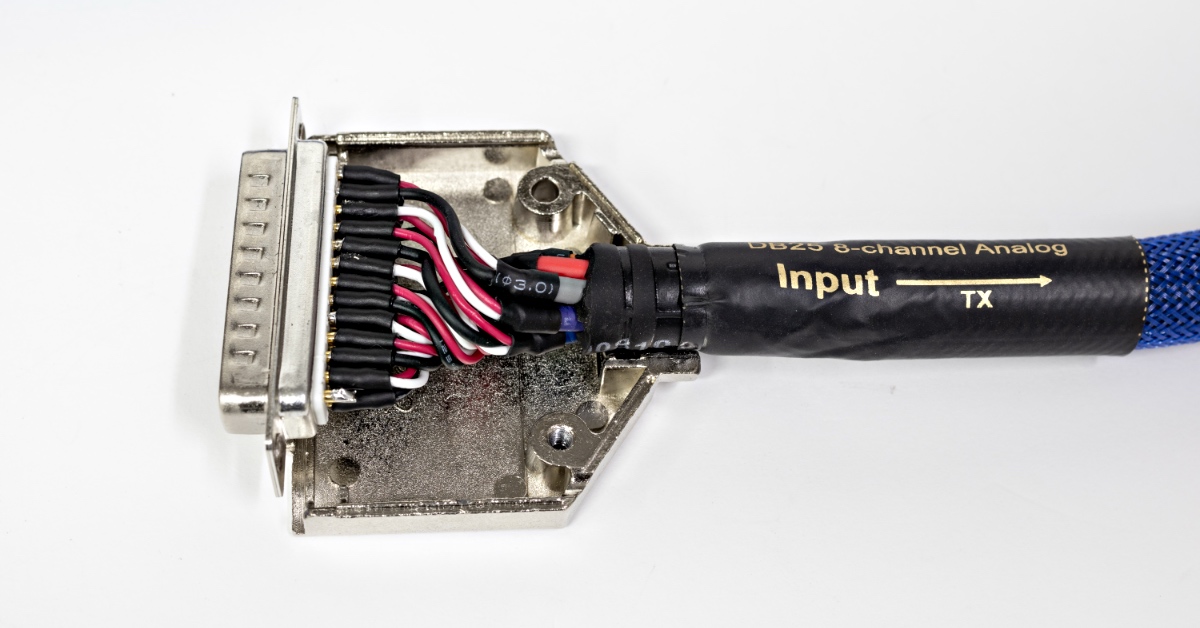

- Secure DB25 screw-lock design for reliable connection
Signal Format
- Multichannel balanced analog audio
- Supports up to 8 channels of line-level analog signals
- 8 channels of audio via a single DB25 connection
Cable Construction
- Individually shielded twisted pairs (per channel)
- No characteristic impedance requirement (optimized for analog signal transmission)
- High-purity copper conductors
- Overall braided and foil shielding for effective noise rejection
Performance
- Low noise and signal degradation
- Minimal crosstalk between channels
- Wide frequency response across the full audio spectrum
- Excellent EMI/RFI rejection for professional environments
Jacket
- Durable PVC outer jacket
- Flexible, abrasion-resistant construction
Color: Blue
Length: 2 m
Weight: 0.75 kg
Package Weight: 2.75 kg (shipping volume-weight)
Reference Information
NuPrime-X Multi-Core Cable
Key Features
- Superior Signal Purity: High-purity OFC conductors and optimized impedance minimize signal loss and jitter.
- Excellent Interference Rejection: Robust dual shielding ensures stable, noise-free performance against EMI/RFl.
- Analog Transmission Excellence: Features 8 individually shielded, balanced twisted pairs using the standard TASCAM (AES59) pinout, delivering reliable analog or digital signal transmission while effectively rejecting common-mode noise over long distances.
- Simplified Professional Wiring: Transmit up to 8 balanced audio channels (analog or AES/EBU digital) via a single, durable cable assembly.
Tascom DB25 XLR

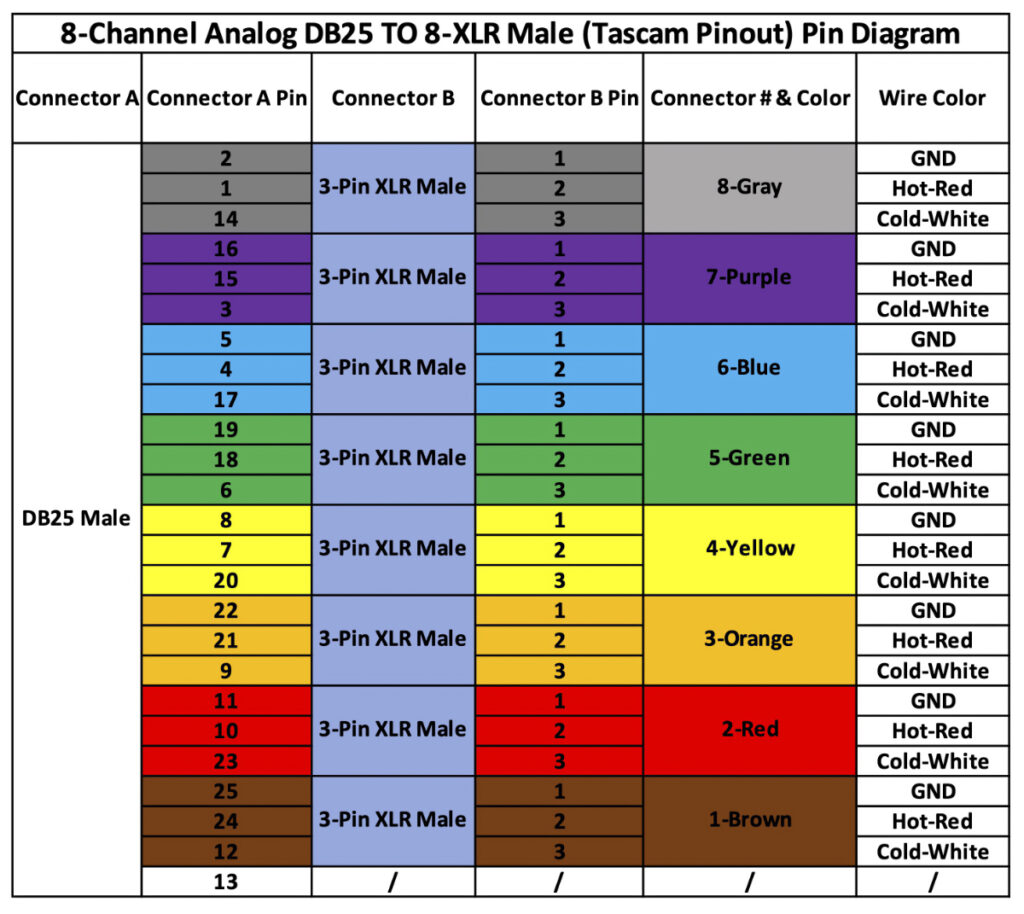

The TASCAM analog DB25 (sometimes called the TASCAM pinout or DA-88 pinout) is the industry-standard wiring scheme for carrying 8 channels of balanced analog audio through a single DB25 (25-pin D-sub) connector.
XLR - Each DB25 carries 8 channels of balanced audio:
- Each channel has 3 connections: Hot (+), Cold (−), and Ground.
- 25 pins total = 8 × 3 = 24 + 1 (one pin is unused or shared ground in some cases).
TASCAM analog DB25 to XLR
TASCAM analog DB25 to DB25
TASCAM analog DB25 to RCA
