Engineered for dependable performance, the NuPrime ANA-Core DB25–DB25 is a studio-grade analog multichannel cable built to the TASCAM DB25 analog standard. It delivers reliable 8-channel balanced audio connectivity between consoles, audio interfaces, converters, and patch bays in professional studio, broadcast, and installation environments. Precision-terminated high-density DB25 connectors and robust shielding ensure durability and consistent signal integrity under demanding conditions. Using premium conductors and an optimized analog design, the cable minimizes crosstalk, noise, and signal degradation across all channels. Suitable for both fixed installations and mobile systems, the ANA-Core DB25–DB25 provides clean, accurate multichannel audio with industry-standard reliability.

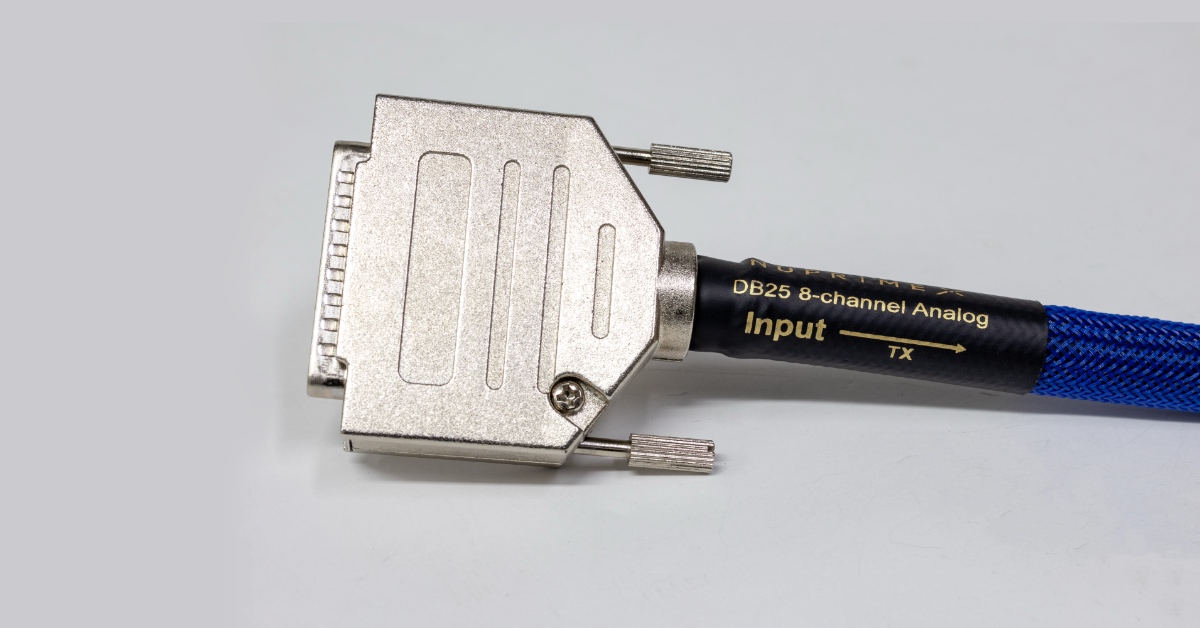

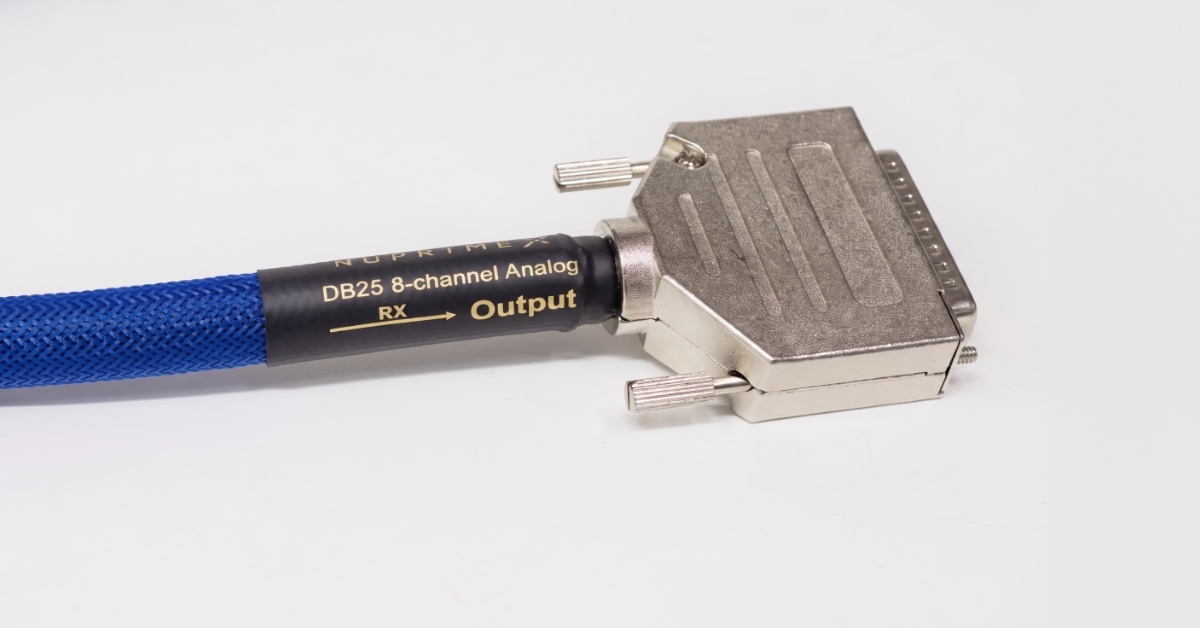

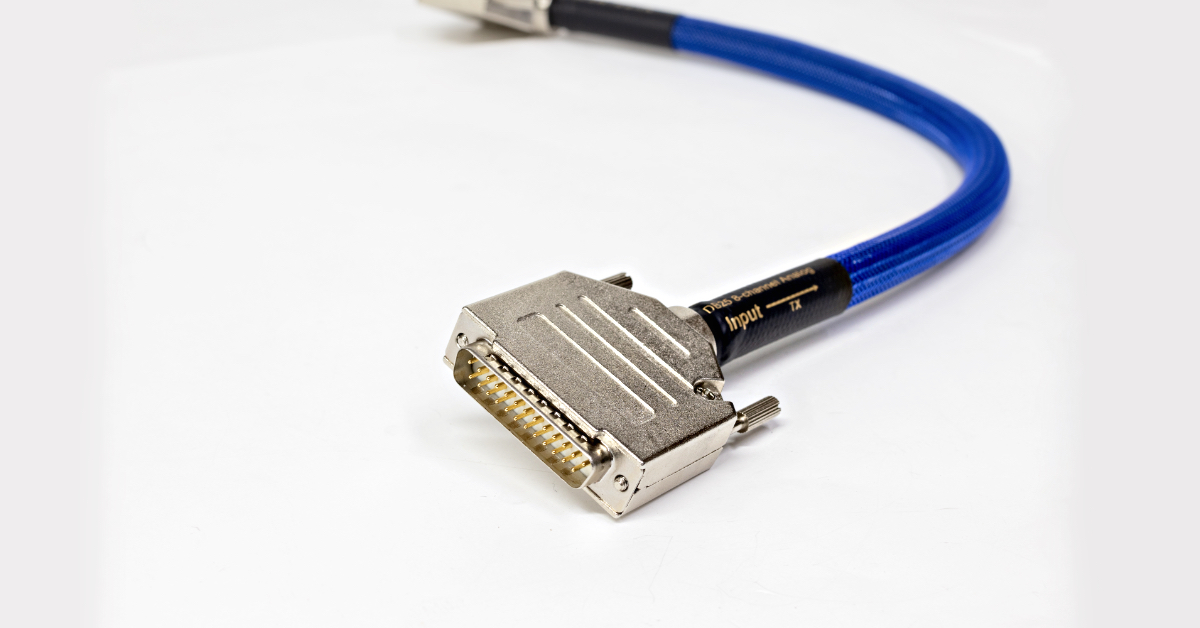

ANA-Core DB25-DB25
$160.00
The NuPrime ANA-Core DB25-DB25 is a studio-grade analog audio cable built to the TASCAM DB25 analog standard, delivering reliable multichannel balanced audio connectivity for professional studio, broadcast, and installation environments.
Availability: 10 in stock
Description
SPECS
SPECIFICATIONS
Standards Compliance
TASCAM analog DB25 pinout (balanced analog multichannel standard)
Connectors
- DB25 male to DB25 male
- Precision-terminated, gold-plated contacts
- Secure screw-lock design for stable and reliable connection
Signal Format
- Multichannel balanced analog audio
- Supports up to 8 channels of line-level analog signals
Cable Construction
- Individually shielded twisted pairs (per channel)
- No characteristic impedance requirement (optimized for analog signal transmission)
- High-purity copper conductors
- Overall braided and foil shielding for effective noise and crosstalk reduction
Performance
- Low noise and signal degradation
- Minimal crosstalk between channels
- Wide frequency response across the full audio spectrum
- Excellent EMI/RFI rejection for professional environments
Jacket
- Durable PVC outer jacket
- Flexible, abrasion-resistant construction suitable for studio and mobile use
General
- Color: Black
- Length: 1.5 m
- Weight: 0.55 kg
- Package Weight: 2.55 kg (shipping volume-weight)
Additional Information
NuPrime-X Multi-Core Cable
Key Features
- Superior Signal Purity: High-purity OFC conductors and optimized impedance minimize signal loss and jitter.
- Excellent Interference Rejection: Robust dual shielding ensures stable, noise-free performance against EMI/RFl.
- Analog Transmission Excellence: Features 8 individually shielded, balanced twisted pairs using the standard TASCAM (AES59) pinout, delivering reliable analog or digital signal transmission while effectively rejecting common-mode noise over long distances.
- Simplified Professional Wiring: Transmit up to 8 balanced audio channels (analog or AES/EBU digital) via a single, durable cable assembly.

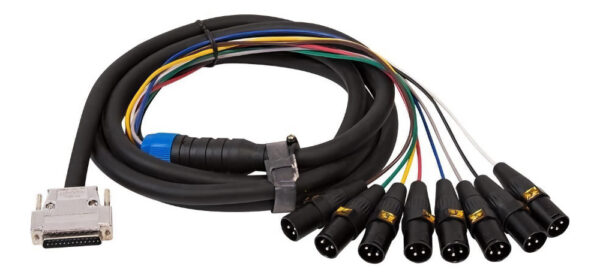

Tascom DB25 XLR

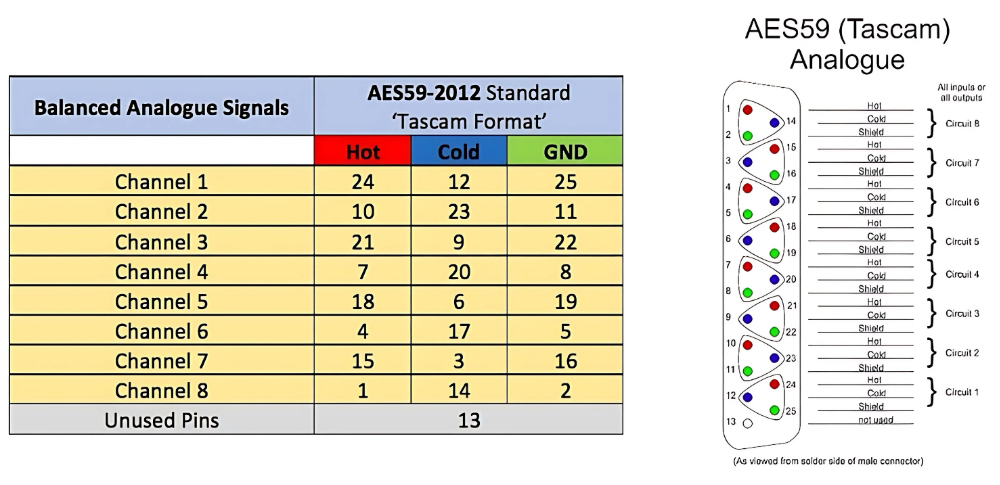

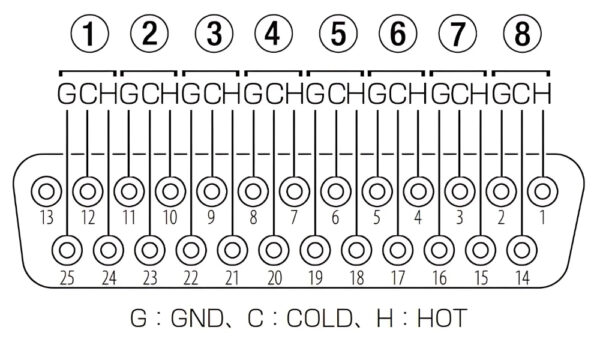

The TASCAM analog DB25 (sometimes called the TASCAM pinout or DA-88 pinout) is the industry-standard wiring scheme for carrying 8 channels of balanced analog audio through a single DB25 (25-pin D-sub) connector.
XLR - Each DB25 carries 8 channels of balanced audio:
- Each channel has 3 connections: Hot (+), Cold (−), and Ground.
- 25 pins total = 8 × 3 = 24 + 1 (one pin is unused or shared ground in some cases).

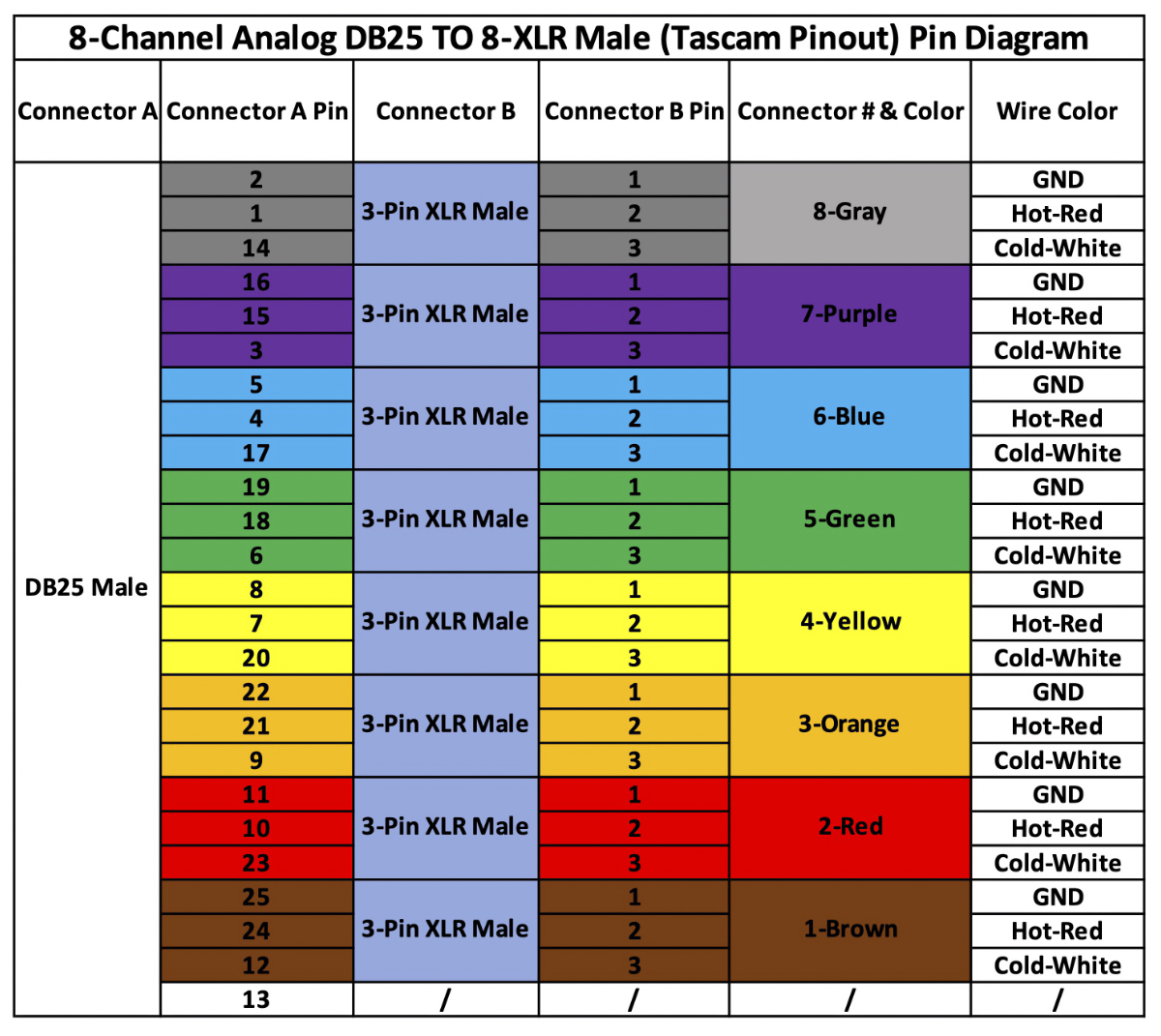

TASCAM analog DB25 to XLR

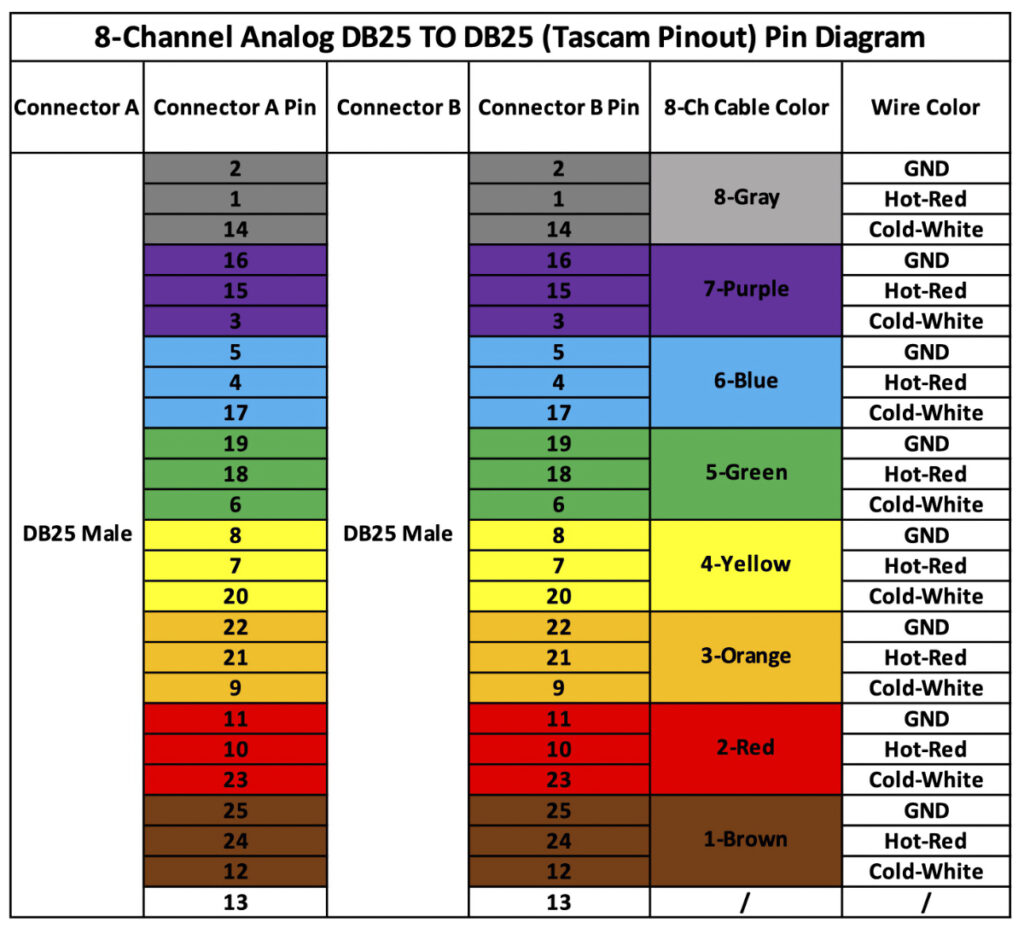

TASCAM analog DB25 to DB25

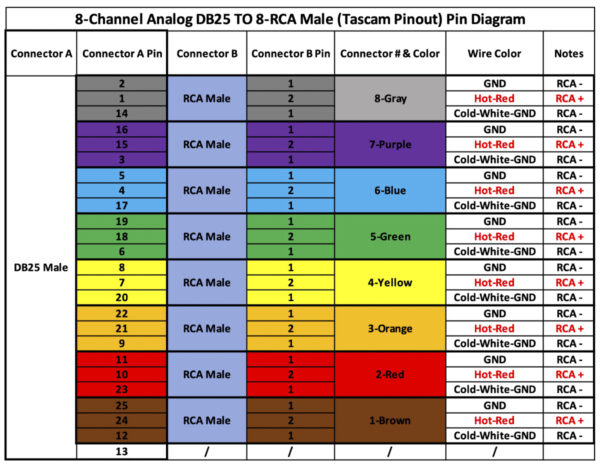

TASCAM analog DB25 to RCA
