The NuPrime AES-Core DB25-XLR cable delivers versatile, high-performance digital interfacing that bridges multichannel AES/EBU systems and discrete balanced equipment with ease. Designed to the AES59 standard, it features a robust DB25 male connector on one end and high-quality 3-pin XLR male connectors on the other, making it ideal for connecting multichannel consoles, DAWs, and breakout boxes to outboard converters, processors, and networked audio devices. Precision impedance-matched conductors and comprehensive shielding ensure stable digital transmission with excellent noise rejection and minimal signal loss. With durable construction and secure connector terminations, the AES-Core DB25-XLR is well suited for both permanent installations and mobile professional environments, delivering consistent, industry-standard performance across all supported AES/EBU formats and sample rates.

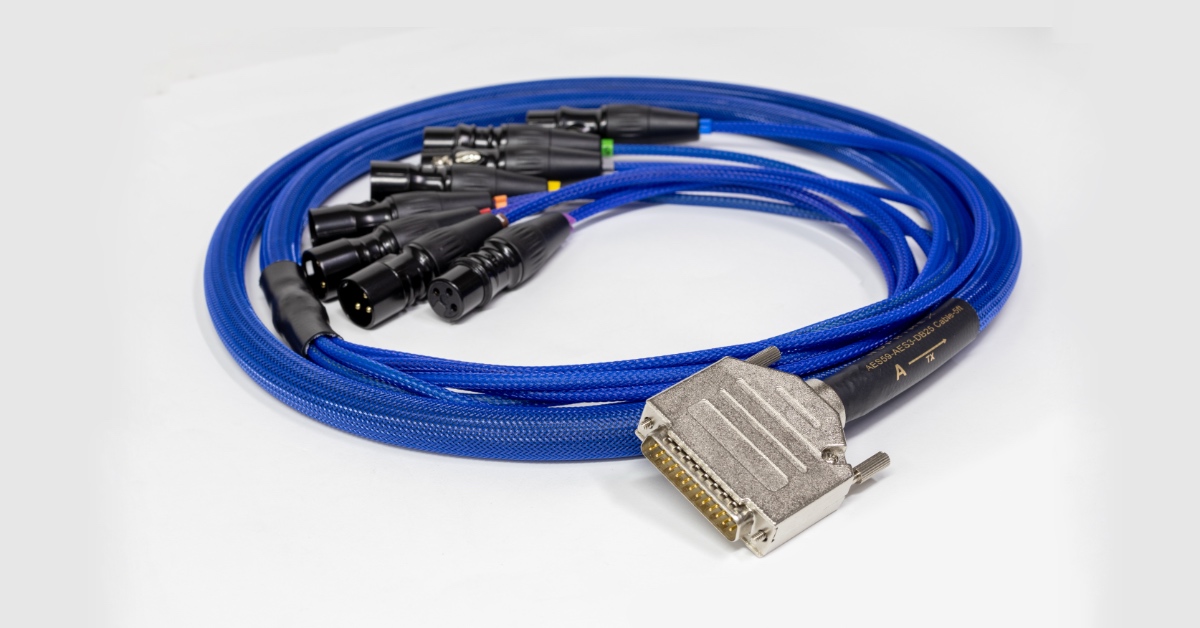

AES-Core DB25-XLR
$199.00
The NuPrime AES-Core DB25-XLR is a professional digital audio cable built to the AES59 standard, providing reliable multichannel AES/EBU connectivity between DB25-equipped systems and balanced XLR devices for studio, broadcast, and live sound use.
(Shipping Feb 10, 2026)
Availability: 10 in stock
Description
SPECS
SPECIFICATIONS
Standards Compliance
- AES59 (DB25 pinout for AES/EBU)
- AES3 digital audio standard
Connectors

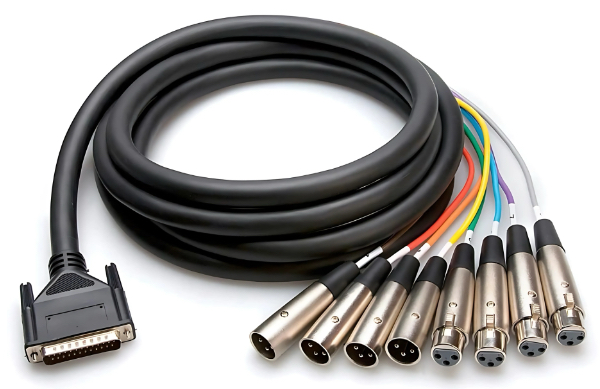

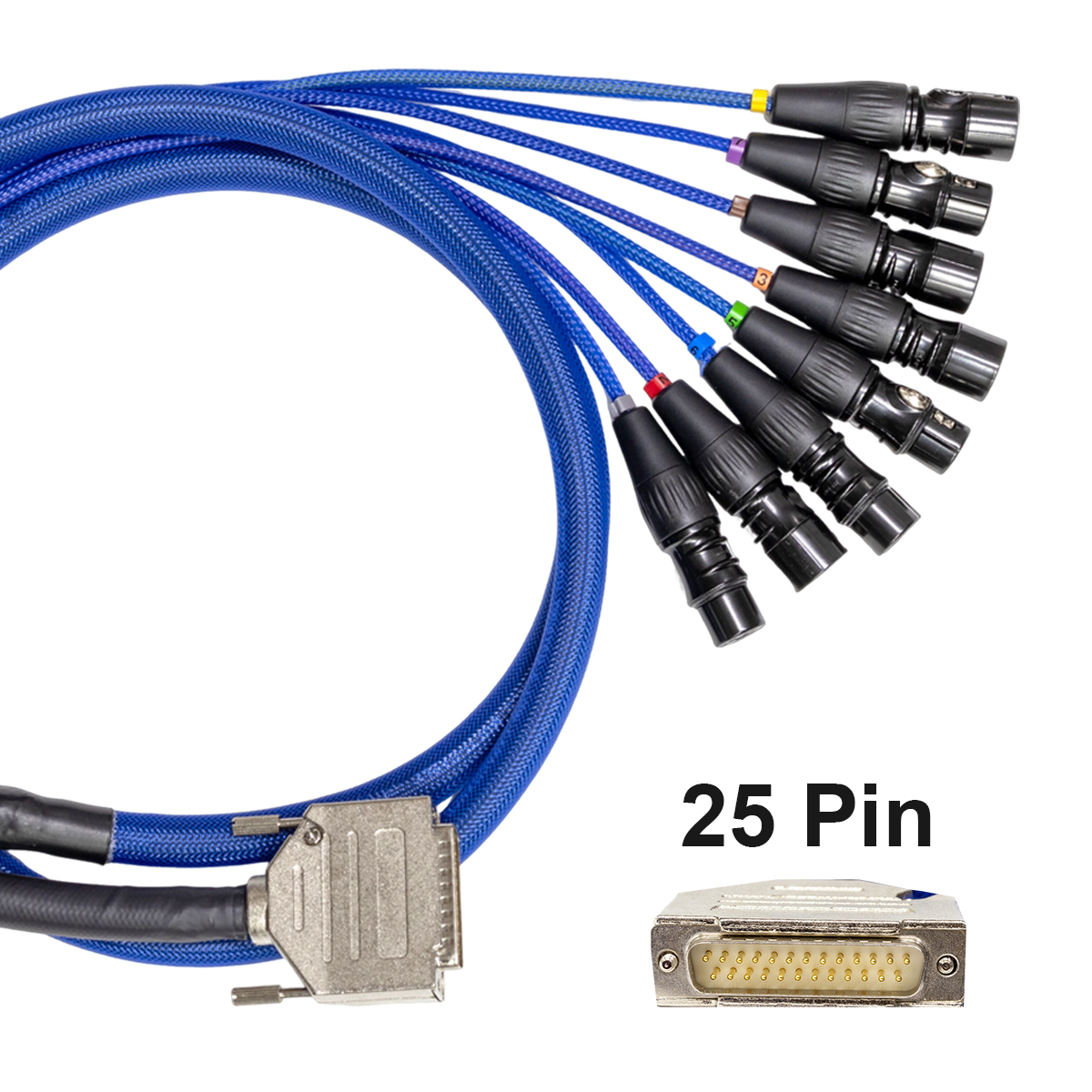

- DB25 male to XLR

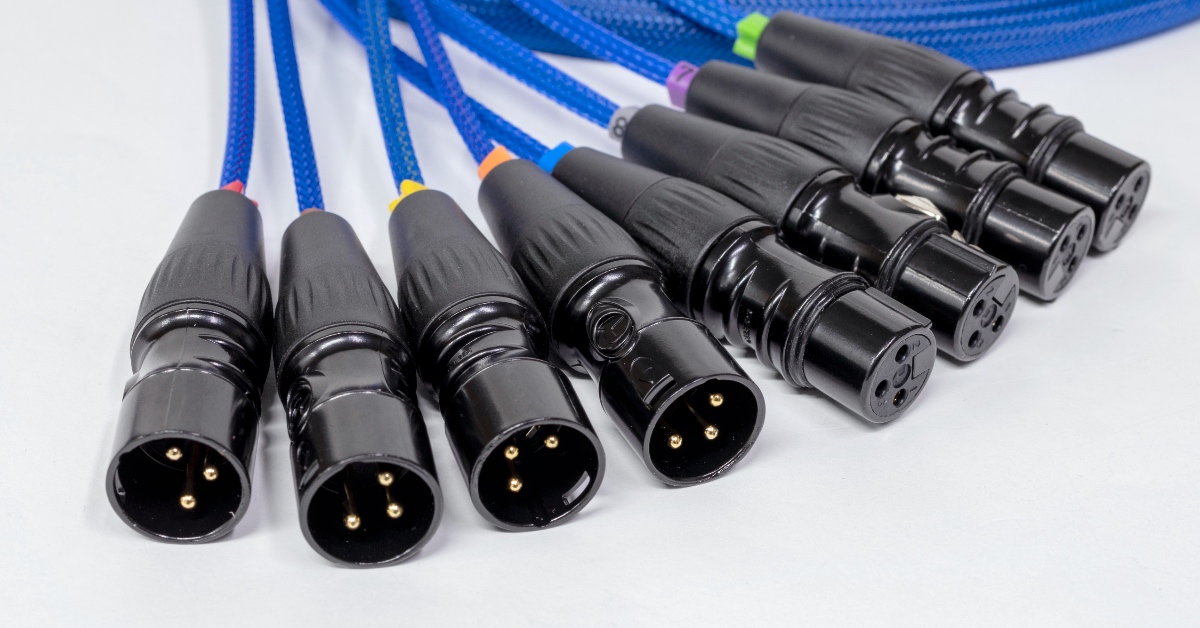

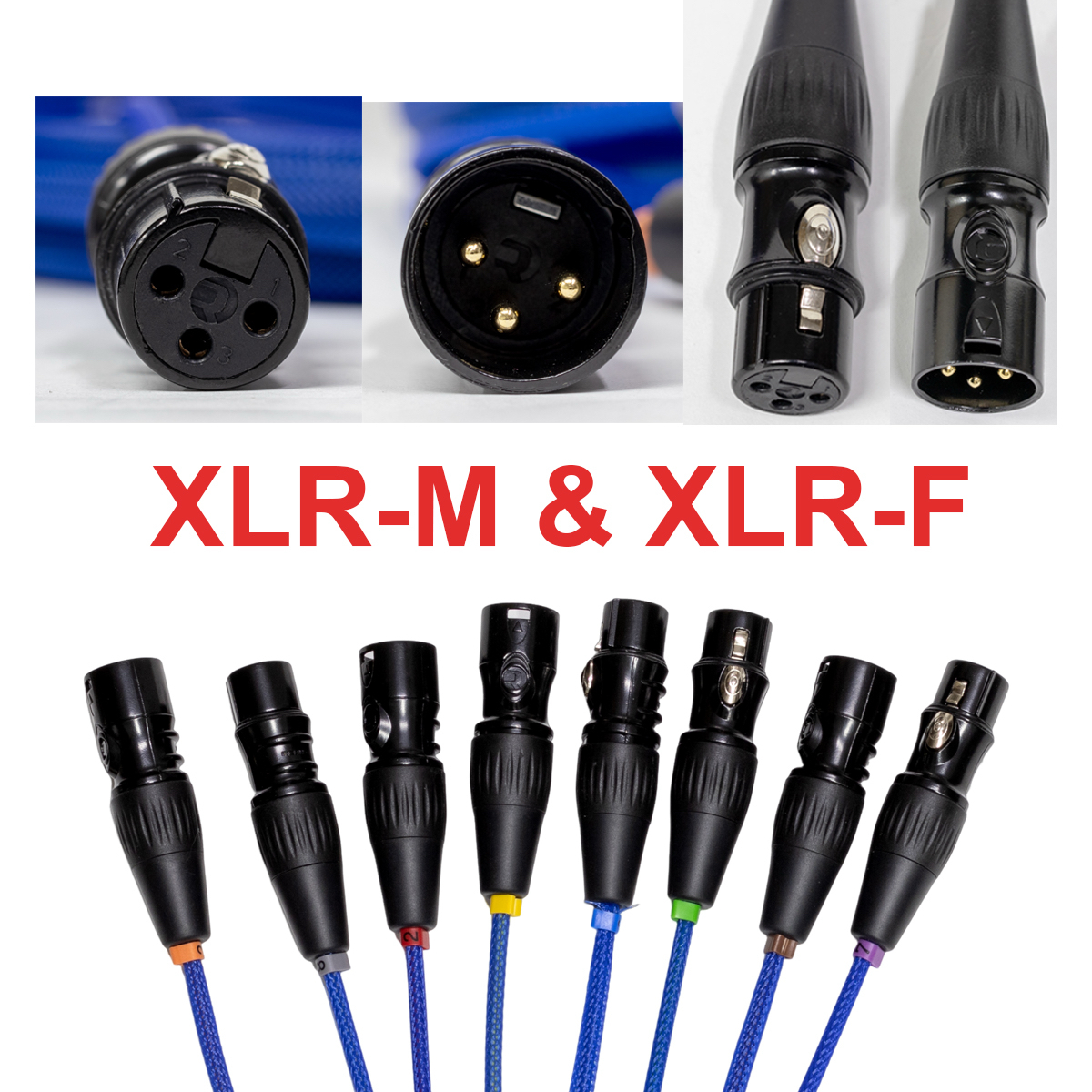

- 4 × XLR male (outputs)
- 4 × XLR female (inputs)

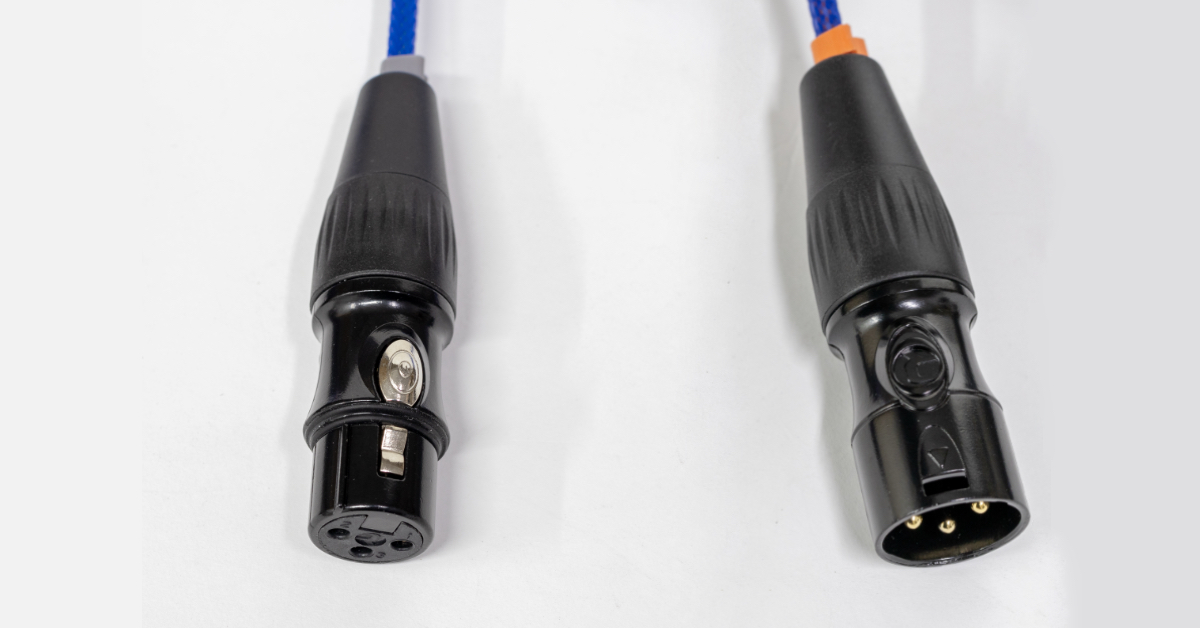

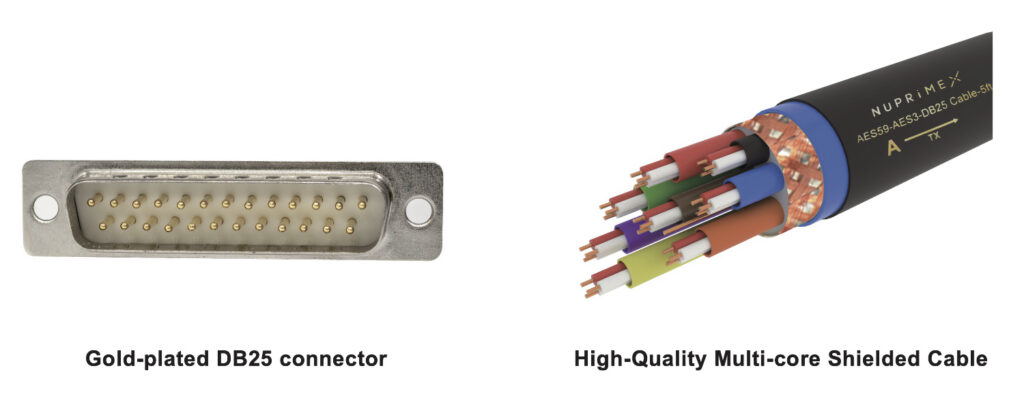

- Precision-terminated, gold-plated contacts

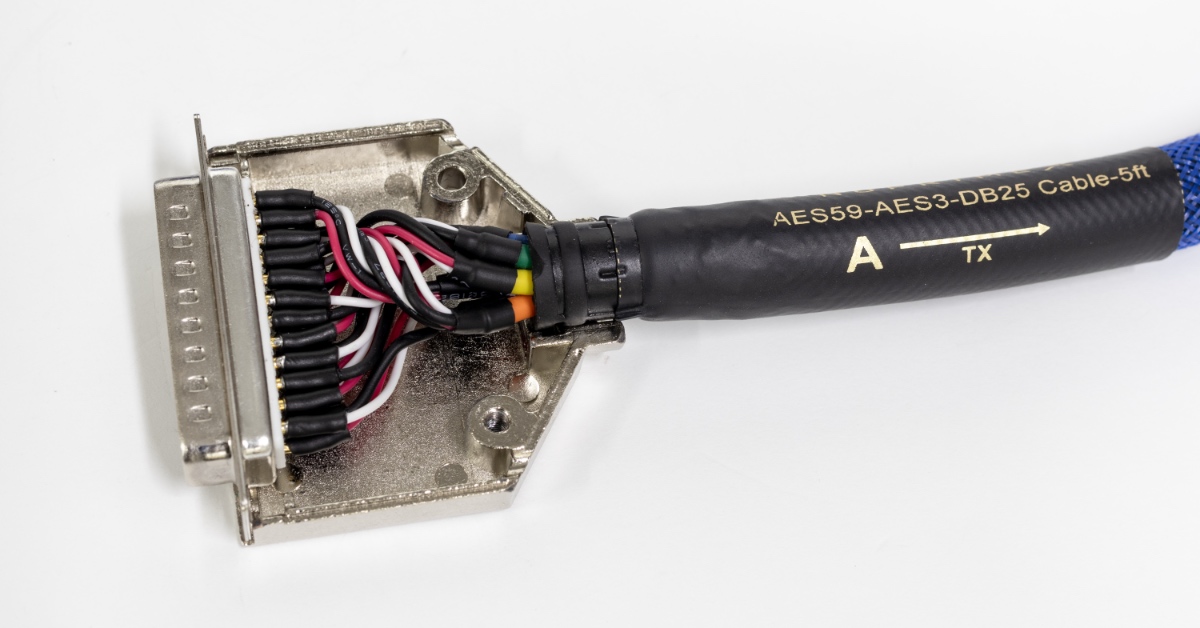

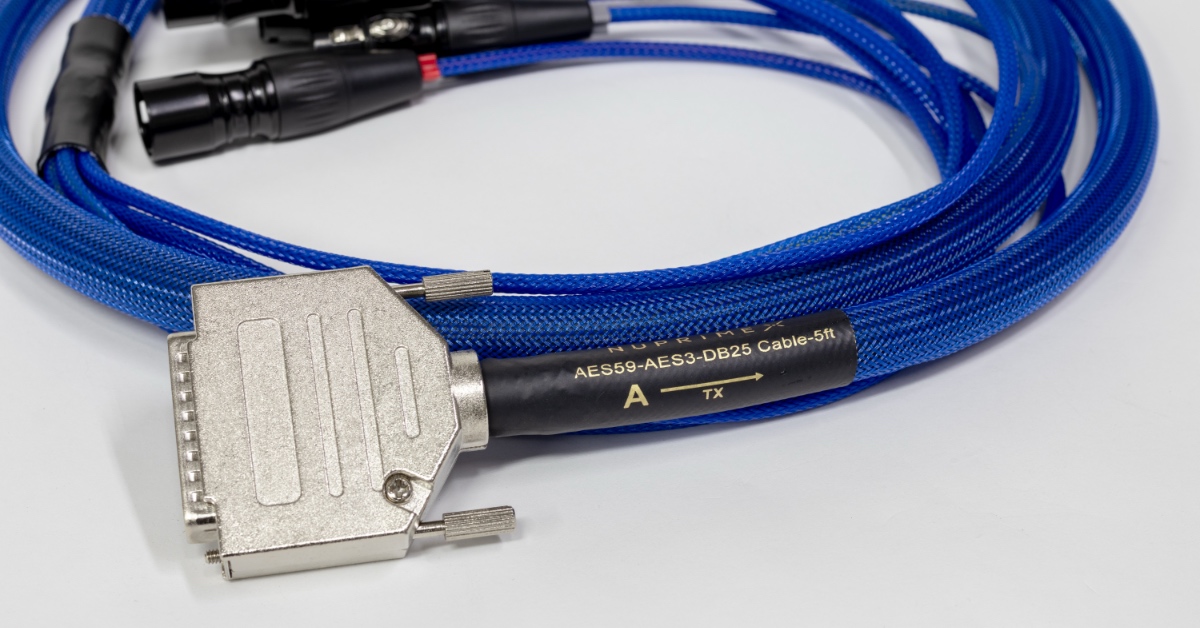

- Secure DB25 screw-lock design for reliable connection
Signal Format
- Multichannel AES/EBU digital audio

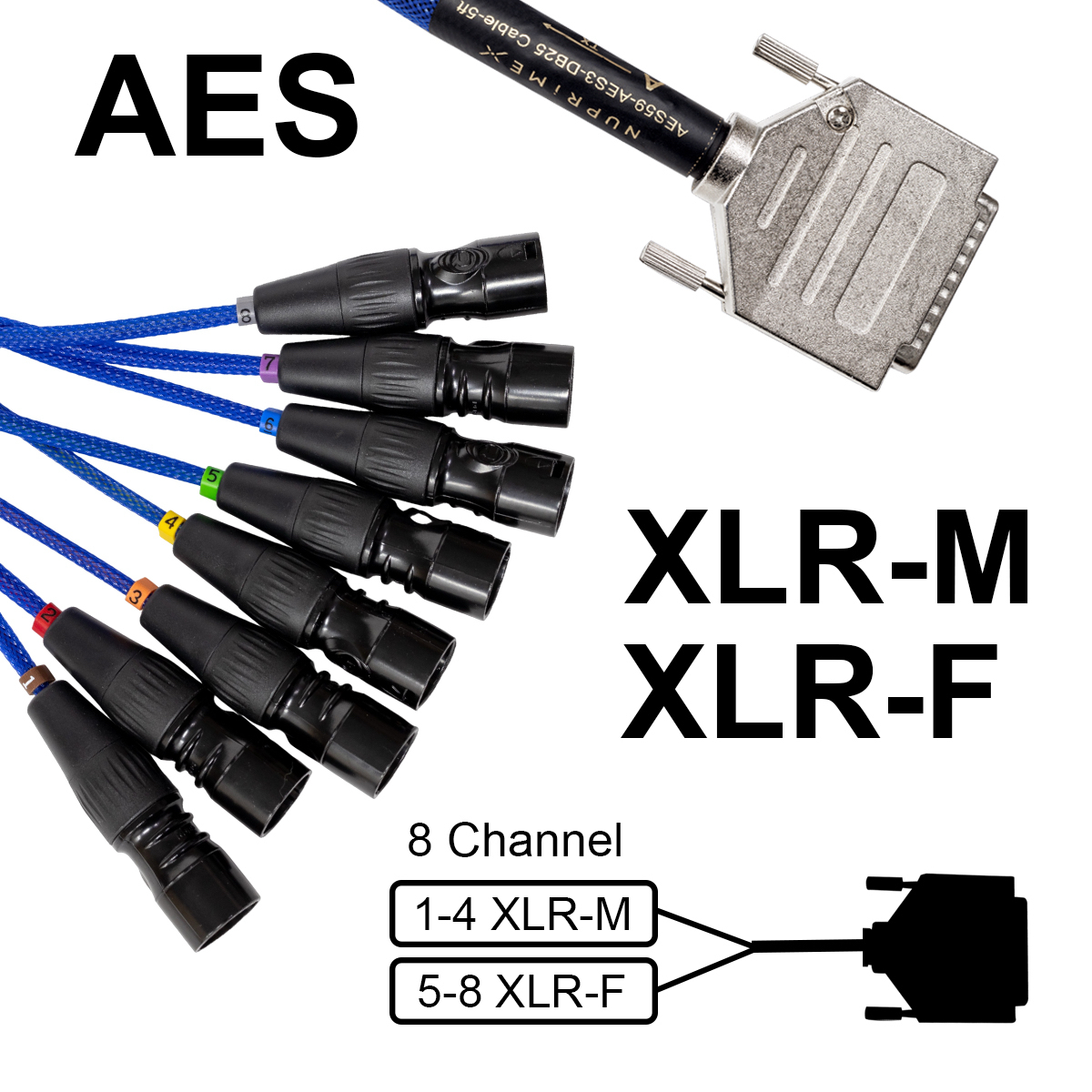

- Supports 4 AES/EBU I/O digital streams
(8 audio channels input and 8 audio channels output , total 16 audio channels) - 8 channels input (via 4 XLR inputs)
- 8 channels output (via 4 XLR outputs)
Cable Construction
- Individually shielded twisted pairs
- Characteristic impedance: 110 Ω (AES/EBU compliant)
- High-purity copper conductors
- Overall braided and foil shielding for effective noise rejection
Performance
- Low jitter and low signal attenuation
- Supports sample rates up to 192 kHz and beyond
- Excellent EMI/RFI immunity
Jacket
- Durable PVC outer jacket
- Flexible, abrasion-resistant construction
Color: Blue
Length: 2 m
Weight: 0.75 kg
Package Weight: 2.75 kg (shipping volume-weight)
Reference Information
NuPrime-X Multi-Core Cable
Key Features
- Superior Signal Purity: High-purity OFC conductors and optimized impedance minimize signal loss and jitter.
- Excellent Interference Rejection: Robust dual shielding ensures stable, noise-free performance against EMI/RFl.
- Analog Transmission Excellence: Features 8 individually shielded, balanced twisted pairs using the standard TASCAM (AES59) pinout, delivering reliable analog or digital signal transmission while effectively rejecting common-mode noise over long distances.
- Simplified Professional Wiring: Transmit up to 8 balanced audio channels (analog or AES/EBU digital) via a single, durable cable assembly.
AES59

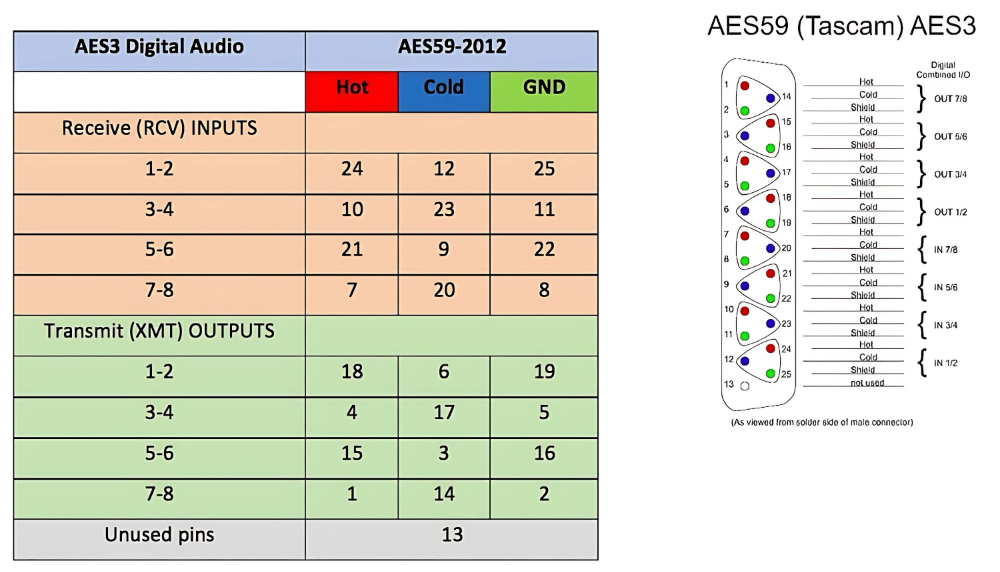

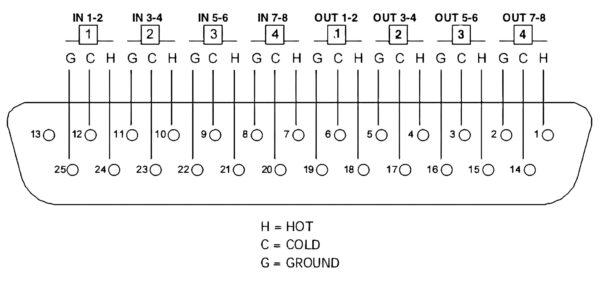

AES59 defines the pin-out and wiring standard for AES3 digital audio signals when transmitted over DB25 (D-sub) connectors. It ensures that multi-channel AES3 connections (typically 8 channels in and 8 channels out) are interoperable between different manufacturers’ equipment — such as audio interfaces, consoles, and recorders.
- Connector type: DB25 (25-pin D-sub)
- Standardized mapping: Matches the TASCAM analog DB25 pinout, but carries digital AES3 signals instead of analog audio.
- Purpose: Provides a consistent way to connect multiple AES3 channels through a single cable.
AES - Each DB25 port carries 8 channels (4 stereo pairs), so two DB25 connectors provide up to 16 channels of AES3 digital audio
AES59 (DB25) to AES59 (DB25)
AES59 (DB25) to AES3 (XLR)
