Engineered for dependable performance, the NuPrime AES-Core DB25-DB25 provides secure, noise-immune digital audio transmission between consoles, audio interfaces, routers, and digital patch bays. Precision-terminated high-density DB25 connectors and robust shielding ensure long-term durability and consistent signal integrity in demanding professional settings. Using premium conductors and an optimized impedance design, the cable minimizes jitter and signal loss across all standard sample rates up to 192 kHz and beyond. Suitable for both fixed installations and mobile recording rigs, the AES-Core DB25-DB25 delivers clean, accurate digital audio with industry-standard reliability, reflecting NuPrime’s commitment to quality and value.

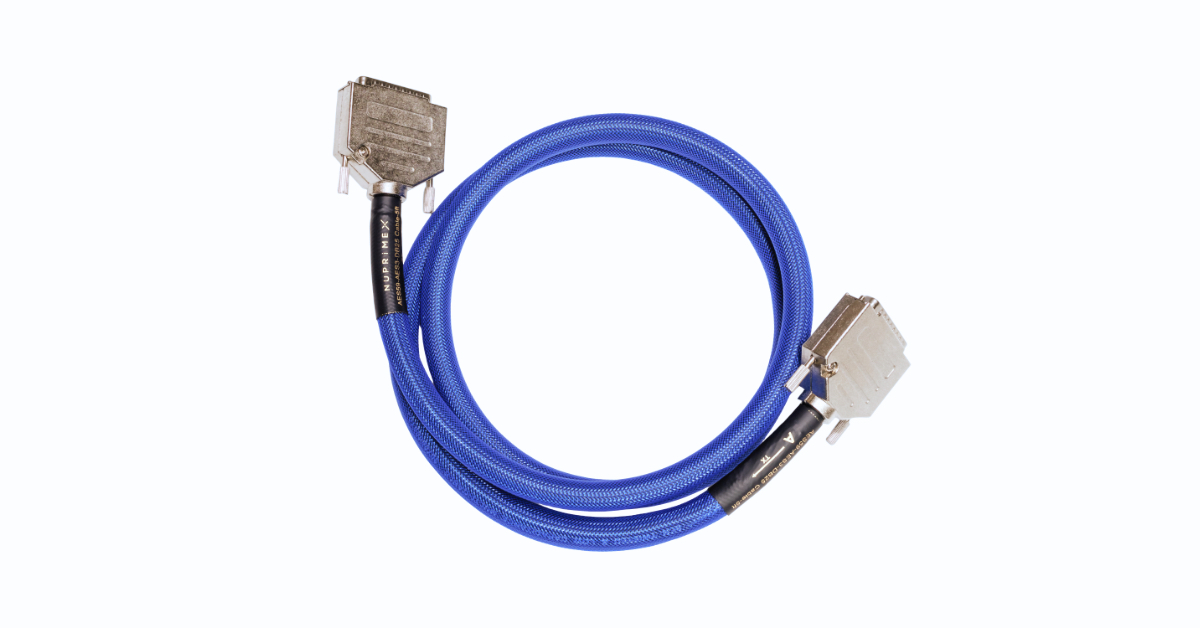

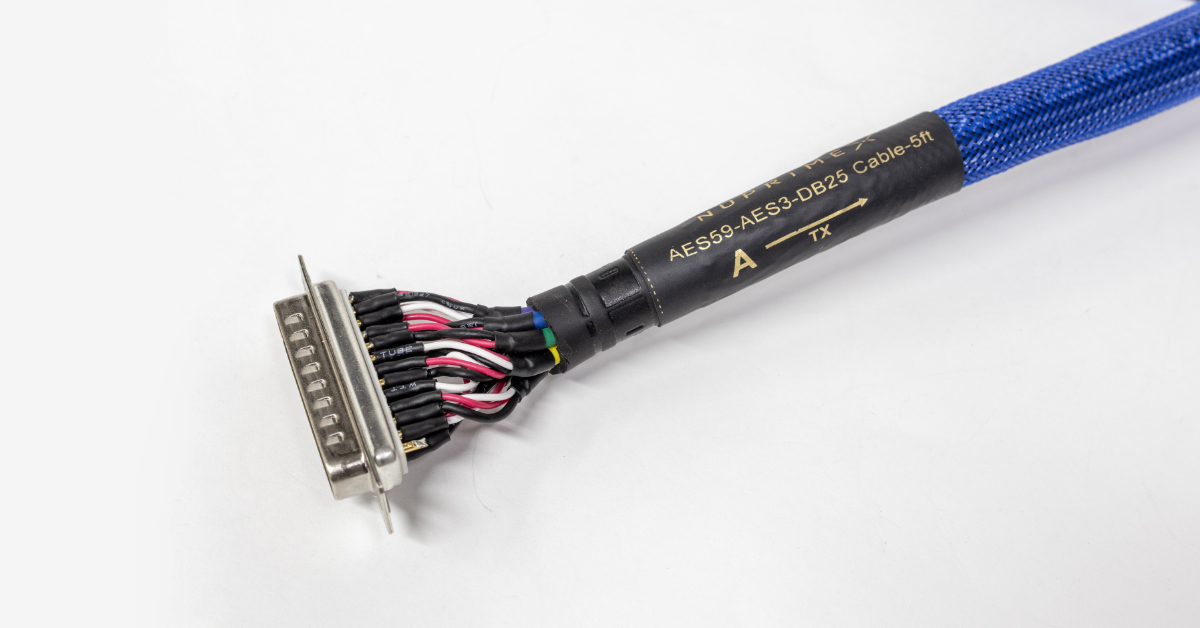

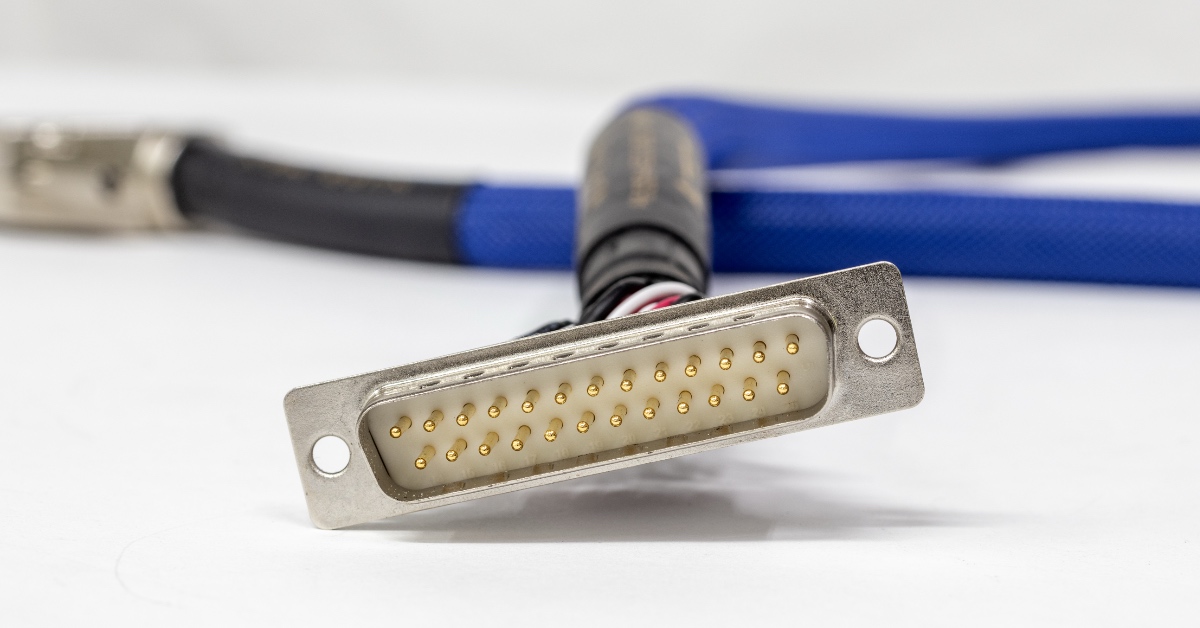

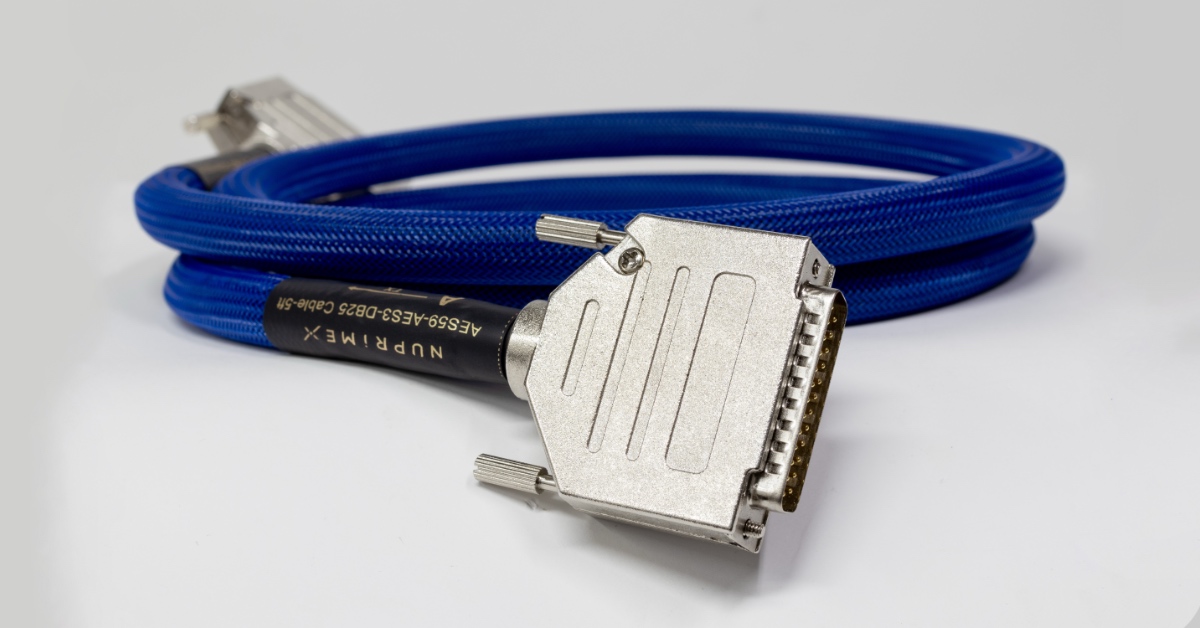

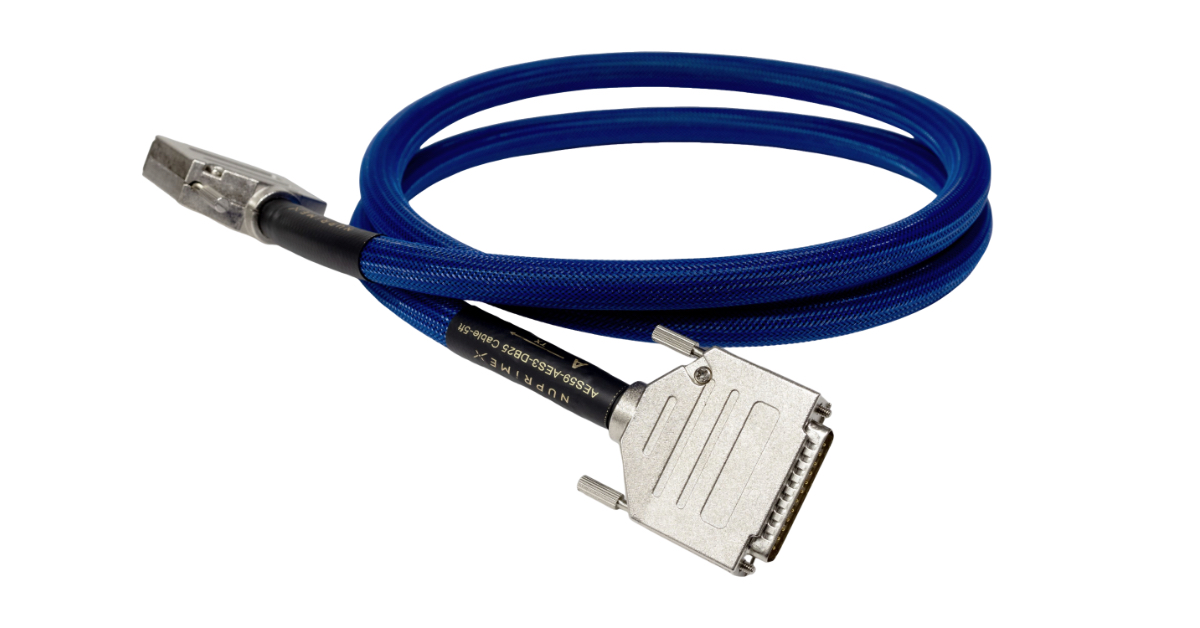

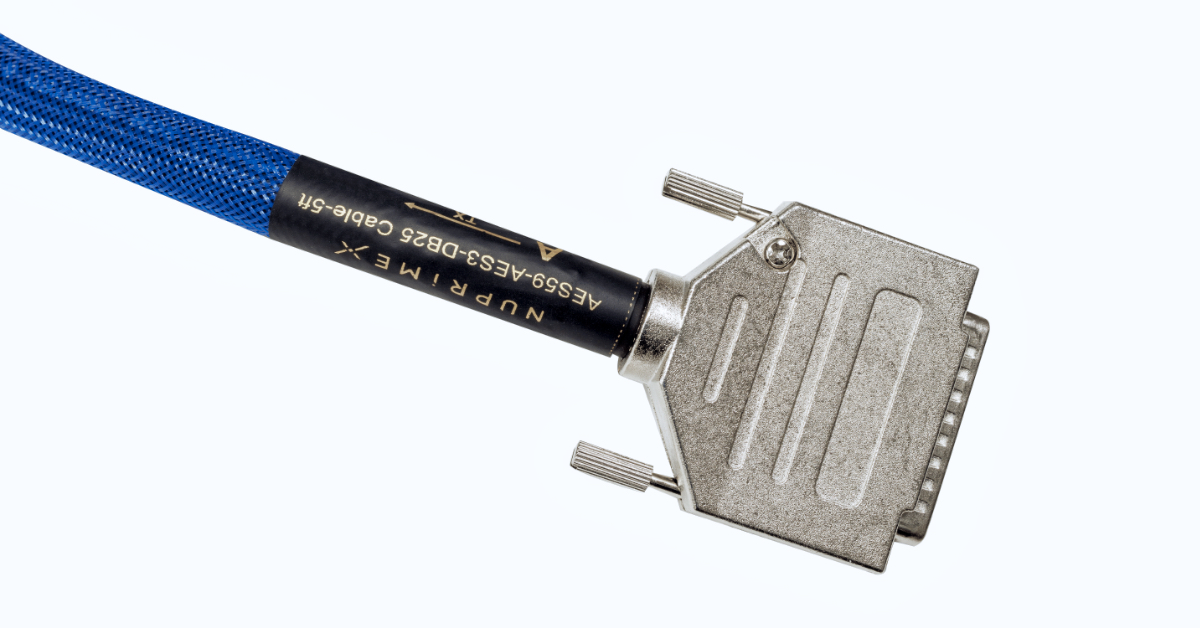

AES-Core DB25-DB25
$160.00
The NuPrime AES-Core DB25-DB25 is a studio-grade digital audio cable built to the AES59 standard, delivering reliable multichannel AES/EBU connectivity for professional studio, broadcast, and installation environments.
(Shipping Feb 10, 2026)
Availability: 10 in stock
Description
SPECS
SPECIFICATIONS
Standards Compliance
- AES59 (DB25 pinout for AES/EBU)
- AES3 digital audio standard
Connectors
- DB25 male to DB25 male
- Precision-terminated, gold-plated contacts
- Secure screw-lock design for reliable connection
Signal Format
- Multichannel AES/EBU digital audio
- Supports up to 4 AES channels (8 audio channels)
Cable Construction
- Individually shielded twisted pairs
- Characteristic impedance: 110 Ω (AES/EBU compliant)
- High-purity copper conductors
- Overall braided and foil shielding for noise rejection
Performance
- Low jitter and signal attenuation
- Supports sample rates up to 192 kHz and beyond
- Excellent EMI/RFI immunity
Jacket
- Durable PVC outer jacket
- Flexible, abrasion-resistant construction
Color: Blue
Length: 1.5m
Weight: 0.55kg
Package Weight: 2.55kg (shipping volume-weight)
Additional Information
AES59
AES59 defines the pin-out and wiring standard for AES3 digital audio signals when transmitted over DB25 (D-sub) connectors. It ensures that multi-channel AES3 connections (typically 8 channels in and 8 channels out) are interoperable between different manufacturers’ equipment — such as audio interfaces, consoles, and recorders.
- Connector type: DB25 (25-pin D-sub)
- Standardized mapping: Matches the TASCAM analog DB25 pinout, but carries digital AES3 signals instead of analog audio.
- Purpose: Provides a consistent way to connect multiple AES3 channels through a single cable.
AES - Each DB25 port carries 8 channels (4 stereo pairs), so two DB25 connectors provide up to 16 channels of AES3 digital audio
